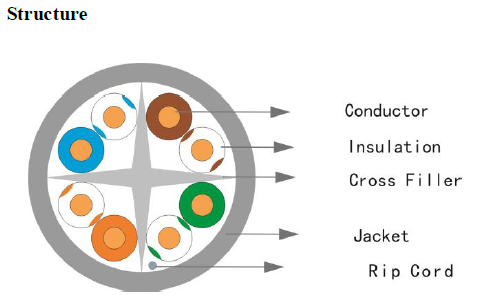

Conductor:

Material : solid bare copper

Diameter: 0.57+0.005mm /23 AWG

Insulation:

Material : HDPE

Diameter: 1.01 士0.03mm

Cross Filler:yes

Rip Cord: optional

Jacket:

Material : PVC/ LSZH

Diameter: 6.2 土0.3mm

Thickness: 0.5mm (Average)

Physical Characteristics

Conductor Elongation ratio:≥ 15% .

Insulation Tensile strength:三 > 16MPa

Insulation Elongation ratio:≥300%

LSZH Jacket Tensile strength LSZH:≥10MPa

LSZH Jacket Elongation ratio LSZH:≥125%

PVC Jacket Tensile strength PVC:≥13. 5MPa

PVC Jacket Elongation ratio PVC:≥ 150%

Electrical Characteristics(20°C)

Linear Resistance:≤9.5Q2/100m

Insulation Resistance: > 5000MQ.km

Characteristic Impedance:100士150

Dielectric Strengt:DC.1kV.1 min no breakdown

Install info

working temperature: -20°C to +60°C

Bending radius:≥ 10 X out diameter

Standard

Complies with Class E & Cat 6 standards,Supports applications up to 250MHz.

ISO/IEC 11801, YD/T1019, TIA568.2-D, EN501 73, RoHS 2011/65/EU, REACH EC 1907/2006
