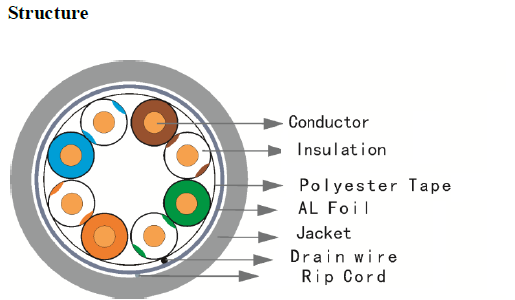

Conductor:

Material : solid bare copper

Diameter: 0.51+0.005mm /24AWG

Insulation:

Material : HDPE

Diameter: 0.99±0.03mm

Polyester Tape:

Overlap rate:≥25%

Al foil:

Overlap rate:≥ 25%

Drain wire: 1*0.4mm tinned copper

Rip Cord: optional

Jacket:

Material : PVC/LSZH .

Diameter : 6.2土 0.3mm

Thickness: 0.55mm (Average)

Physical Characteristics

Conductor Elongation ratio:≥ 15% .

Insulation Tensile strength:≥1 6MPa

Insulation Elongation ratio:≥300%

LSZH Jacket Tensile strength LSZH:≥10MPa

L SZH Jacket Elongation ratio LSZH:≥1 25%

PVC Jacket Tensile strength PVC: > 13.5MPa

PVC Jacket Elongation ratio PVC:≥ 150%

Electrical Characteristics(20°C)

Linear Resistance:≤9.5Q2/100m

Insulation Resistance:≥5000MQ.km

Mutual capacity 0.8kHz:≤5.6nF/100m

Characteristic Impedance:100土159

Dielectric Strengt:DC.1kV.1 min no breakdown

Install info

working temperature: -20°C to +60°C

Bending radius:≥10 X out diameter

Standard

Complies with Class D & Cat 5E standards,Supports applications up to 100MHz .

ISO/IEC 11801, YD/T1019, TIA568.2-D, EN50173, RoHS 2011/65/EU, REACH EC 1907/2006
