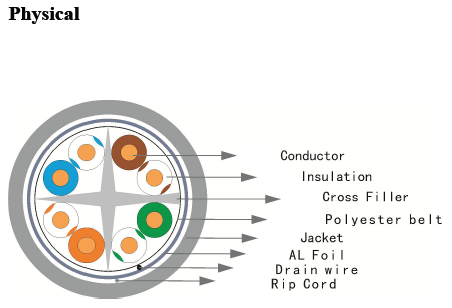

Conductor:

Material: solid bare copper

Diameter: 0.57±0.01mm /23AWG

Insulation:

Material: HDPE

Diameter: 1.12+0.05mm

Cross Filler: LSZH

Polyester Tape:

Overlap rate: > =25%

Al foil:

Overlap rate:≥ 25%

Drain wire: 1*0.4mm tinned copper

Rip cord: optional

Jacket:

Material: PVC-CMR

Diameter: 7.4+0.5mm

Thickness: 0.6mm (Average)

Physical Characteristics

Conductor Elongation ratio:≥ 15%

Insulation Tensile strength:≥ 16MPa

Insulation Elongation ratio:≥300%

Jacket Tensile strength: > 13.5Mpa

Jacket Elongation ratio:≥150%

Electrical Characteristics (20°C)

Linear resistance:≤9.592/100m

insulation resistance: > 5000MQ.km

Characteristic impedance: 100士 592(at 100MHZ)

Dielectric strength:DC.1kV.lmin no breakdown

Install info

Installation temperature: -20°C to +60C

Working temperature : -40°C to +70°C

Bending radius:≥ 10 X out diameter

Standard

ISO/IEC 11801, TIA 568.2-D, EN50173 EC61156-5, RoHS 2011/65/EU, REACH EC 1907/2006
